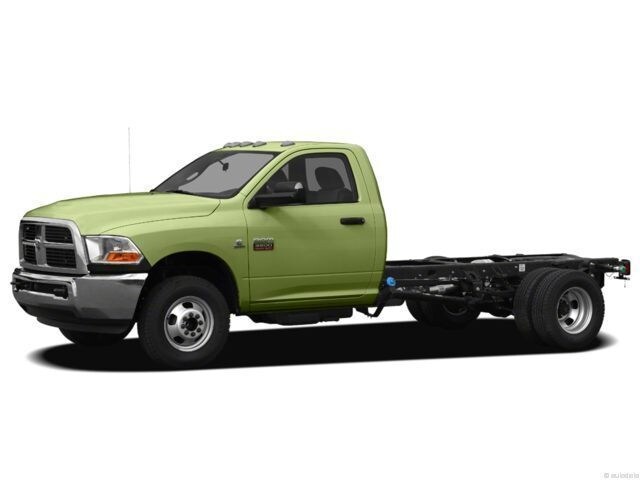

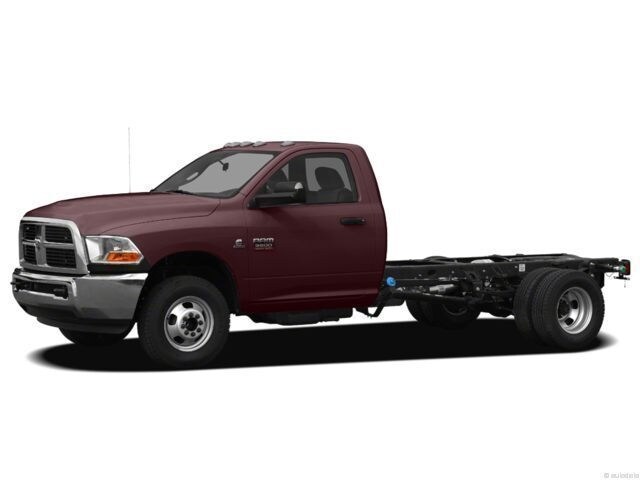

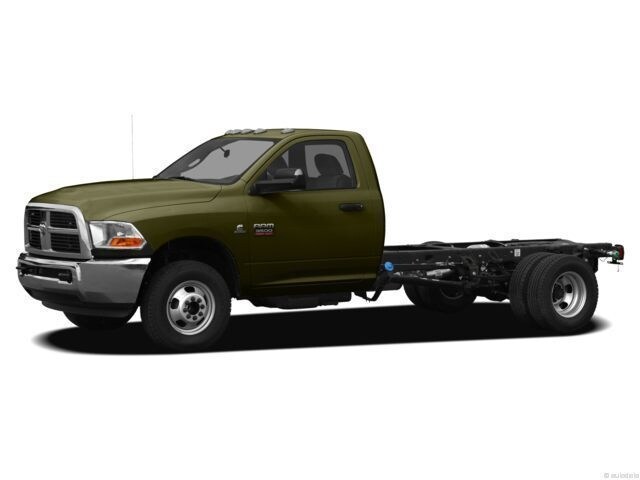

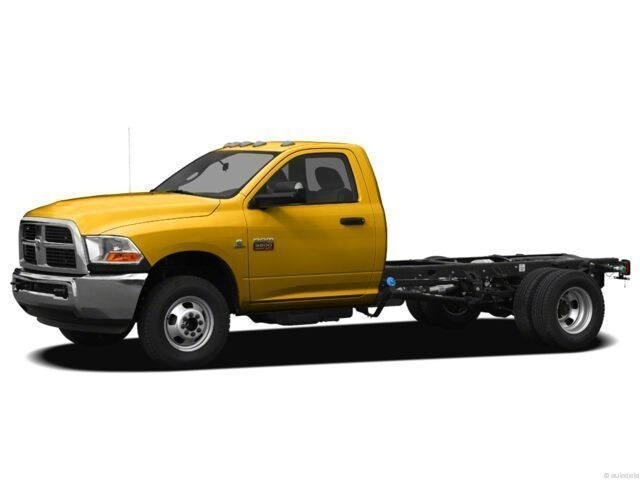

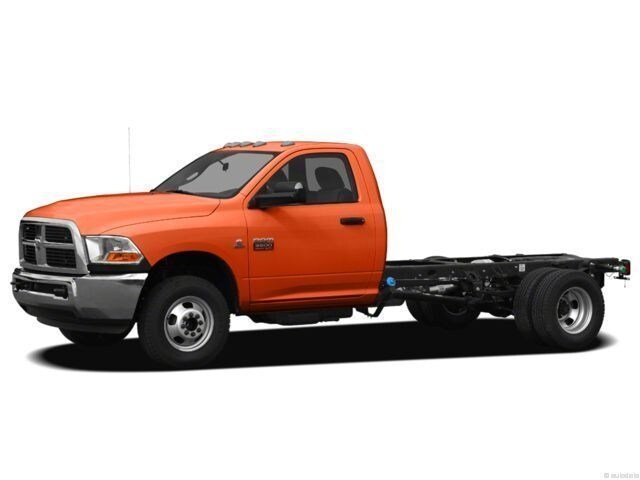

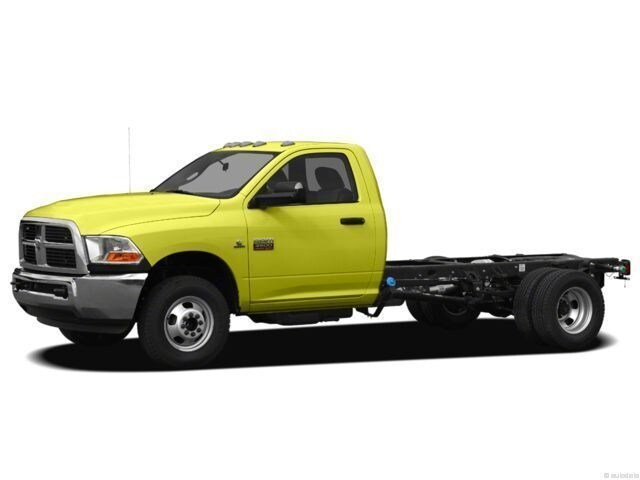

2012 Ram 4500 HD Chassis Truck

2012 Ram 4500 HD Chassis Truck Overview

The standard features of the RAM 4500 HD Chassis ST/SLT include Cummins 6.7L I-6 305hp engine intercooled turbo, 6-speed manual transmission with overdrive, 4-wheel anti-lock brakes (ABS), 19.5" steel wheels, cruise control, AM/FM stereo in-dash mounted single CD MP3 decoder, with 2 speakers, systems monitor, tilt steering wheel, light tinted windows, 4-way manual adjustment driver & passenger seats, and a max trailer weight of 18,300lbs. (en)

2012 Ram
4500 HD Chassis Truck

Starting at: $39,730

View New Inventory

Yes, I'm Interested

Specifications Trims

Specifications

Speed control
Tilt steering wheel
Passenger vanity mirror
Front beverage holders
Driver door bin
Passenger door bin

Approach angle - 26 deg
Departure angle - 25 deg
Ground clearance (min) - 211mm (8.3")
Ground clearance (max) - 257mm (10.1")
Ramp breakover angle - 21 deg

AM/FM radio
CD player
MP3 decoder
Speakers - 2

Basic warranty - 36 months/36,000miles
Powertrain warranty - 60 months/100,000miles
Corrosion perforation warranty - 60 months/100,000miles
Roadside assistance coverage - 36 months/36,000miles

Max seating capacity - 3
Front seats - bench
Front center armrest - w/storage

Engine displacement - 6.7 L
Engine horsepower - 305hp @ 3,000RPM
Engine torque - 610 lb.-ft. @ 1,600RPM
Engine bore x stroke - 107.0mm x 124.0mm (4.21" x 4.88")
Compression ratio - 17.30 to 1
Payload - 3,846kg (8,480lbs)
Curb weight - 3,411kg (7,521lbs)
GVWR - 7,257kg (16,000lbs)
Towing capacity - 8,301kg (18,300lbs)
Exterior length - 5,951mm (234.3")
Exterior body width - 2,004mm (78.9")
Exterior height - 2,024mm (79.7")
Wheelbase - 3,670mm (144.5")
Turning radius - 6.4m (20.8')
Front legroom - 1,041mm (41.0")
Front headroom - 1,036mm (40.8")
Front hiproom - 1,615mm (63.6")
Front shoulder room - 1,676mm (66.0")
Passenger volume - 1,812L (64.0 cu.ft.)
Interior cargo volume - 430 L (15 cu.ft.)
Interior maximum cargo volume - 430 L (15 cu.ft.)

Engine liters - 6.7
Compressor - intercooled turbo
Cylinder configuration - I-6
Horsepower - 305hp @ 3,000RPM
Torque - 610 lb.-ft. @ 1,600RPM
Number of valves - 24
Engine location - front
Recommended fuel - diesel
Transmission - 6 speed manual
Drive type - rear-wheel
Limited slip differential
Fuel tank capacity - 52.0gal.

4 wheel disc brakes
ABS brakes
Dual front impact airbags
Passenger cancellable airbag
Ignition disable

Front anti-roll bar
Rear anti-roll bar
Power steering
Front tires - 225/70R19.5G
Rear tires - 225/70R19.5G
Dual rear wheels
Wheel size - 19.5"

Fully automatic headlights
Delay-off headlights
Variably intermittent wipers
Tachometer
Voltmeter

Trims

	MSRP	Engine	Transmission	City/Hwy mpg
ST 4x2 144.5in Search New	$39,730	305-hp 6.7L 6-cyl	6-spd man.	No Data
ST 4x2 168.5in Search New	$39,915	305-hp 6.7L 6-cyl	6-spd man.	No Data
ST 4x2 192.5in Search New	$40,020	305-hp 6.7L 6-cyl	6-spd man.	No Data
ST 4x2 204.5in Search New	$40,090	305-hp 6.7L 6-cyl	6-spd man.	No Data
ST 4x2 Crew 173.4in Search New	$43,225	305-hp 6.7L 6-cyl	6-spd man.	No Data
ST 4x2 Crew 197.4in Search New	$43,380	305-hp 6.7L 6-cyl	6-spd man.	No Data
ST 4x4 144.5in Search New	$43,440	305-hp 6.7L 6-cyl	6-spd man.	No Data
ST 4x4 168.5in Search New	$43,625	305-hp 6.7L 6-cyl	6-spd man.	No Data
ST 4x4 192.5in Search New	$43,730	305-hp 6.7L 6-cyl	6-spd man.	No Data
ST 4x4 204.5in Search New	$43,800	305-hp 6.7L 6-cyl	6-spd man.	No Data
ST 4x4 Crew 173.4in Search New	$46,940	305-hp 6.7L 6-cyl	6-spd man.	No Data
ST 4x4 Crew 197.4in Search New	$47,095	305-hp 6.7L 6-cyl	6-spd man.	No Data
